HS-5125MG on ohut (10mm) voimakas digitalinen siipiservo metallirattailla ja kahdella kuulalaakerilla.

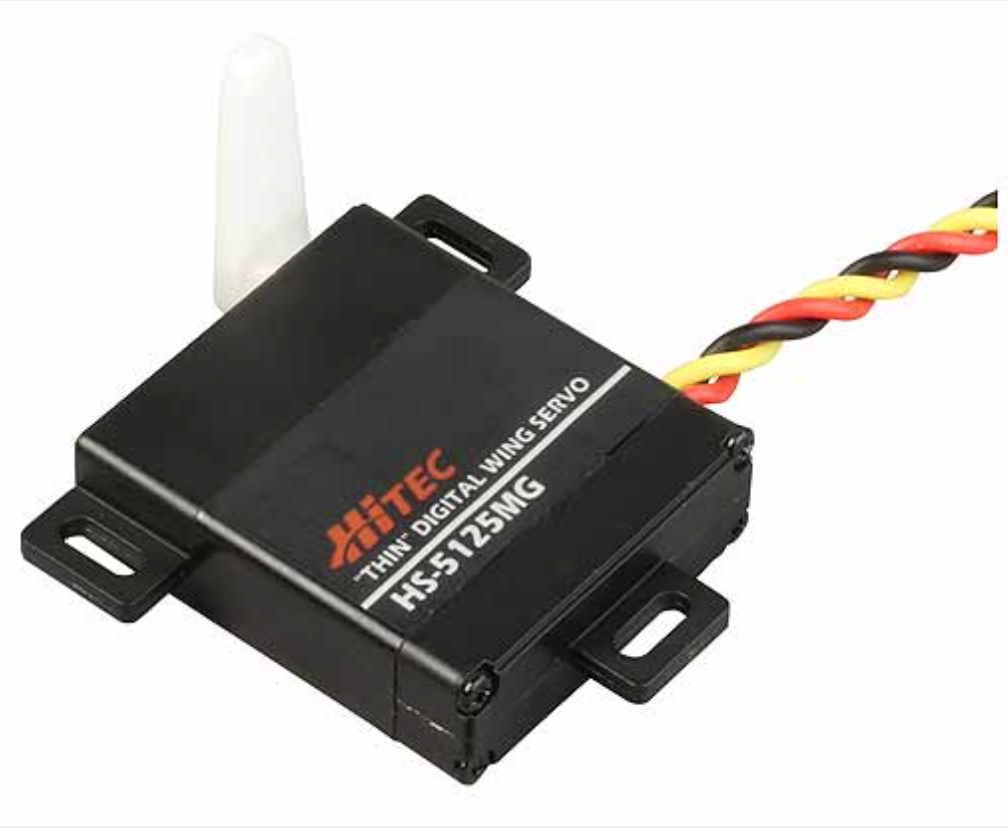

Hitec HS-5125MG digi
Width : 10 mm
height : 34 mm
length : 30 mm
Weight : 0.024 Kg
servo Type: Micro
Features: Digital
Engine type servos: brushed
Transmission: metal
operating voltage in V: 4.8 to 6.0 V
operating time s / 60 ° at 4 , 8 volts: 12:17
positioning time s / 60 ° at 6.0 volts: 12:13
torque in kg cm at 4.8 volts: 3
torque in kg cm at 6.0 volts: 4
gearing: Micro
bearings: Yes
Waterproof: No
flight Yes
Recommendation Heli: No
recommendation Car: No
recommendation boat: NoSmall, robust digital servo area of 10 mm class
It is considered one of robustesten servos in the micro class.
The digital HS-5125MG Nano Servo is fully programmable and offers unprecedented durability thanks to its exclusive metal gears with two ball bearings on the output shaft, which is particularly suitable when low clearance and high positional accuracy are important.
The HITEC Servo HS-5125MG provides maximum performance with minimal weight and is using this information also a favorite for industrial applications. The long life and the uniquely designed gearbox make it a the most reliable and efficient mini servos on the market.
The HS-5125MG is ideal for applications as special surface servo for competition models with thin profiles.
features:- Digital MOS FET amplifier
- Longlife Poti
- High holding force
- Two ball bearings
- Metal gears
